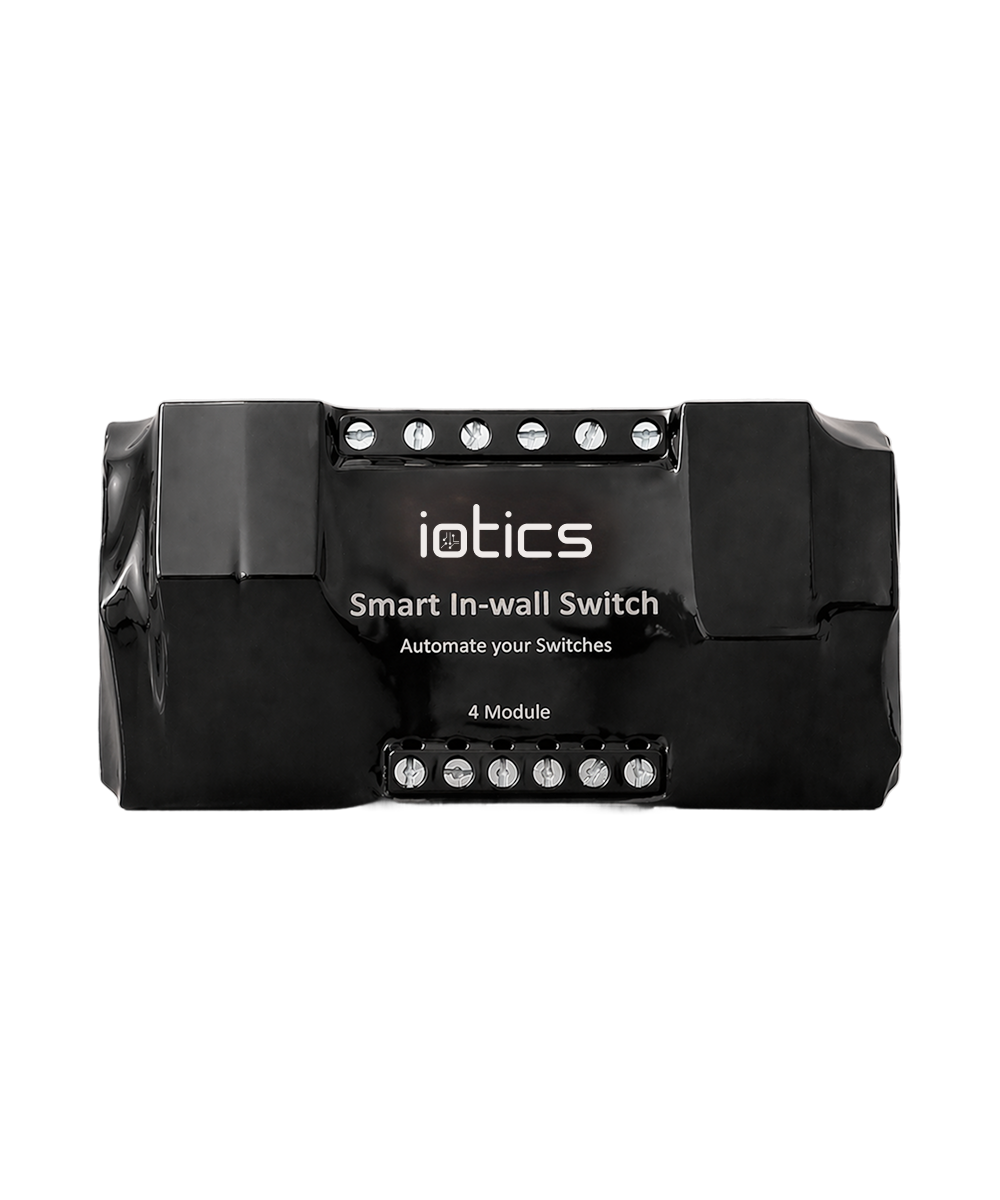

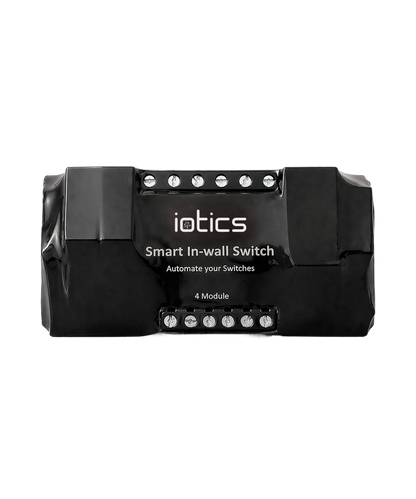

4 Channel Smart Switch Module for Home (Inwall 4S)

Wi-Fi chips in these switches allow you to control your devices such as lights, ACs and geysers over the internet from anywhere in the world.

The switch will stop functioning if there is a power cut. Once the power is back on, the switch will return to its original function.

In-wall switches are electronically controlled devices installed inside a wall box that manage power to connected loads such as lights or geysers. Unlike traditional mechanical switches, they operate without manual mechanical interruption of the circuit. Instead, they use internal electronic circuitry to control the on/off state while remaining permanently wired into the building’s electrical system.

Relays used in in-wall switches have been tested for more than one lakh on/off cycles so the life expectancy is very high.

You can buy the device on our website or on Amazon. If you would like to speak to us before please call +91 9487044355 and we will be happy to assist.

We accept payment through direct Bank Transfer, PayTm and other UPI apps such as Google Pay and Phone Pe. We don’t accept cash on delivery.

These switches are designed, developed and manufactured in Tamil Nadu, India. The complete know how and intellectual property, from electronics to cloud technology has been created by our in-house engineers. We have built and tested these in-wall switches from the ground up, for the Indian market.

In our humble opinion, what makes iotics switches great is that these switches are a perfect combination of affordability, reliability and features.

The answer is no, unfortunately we do not send engineers to install the device. The reason is that installation of our switches is an extremely straightforward process. Any electrician will be able to complete the installation. Detailed instructions are also available with each switch. If required, the iotics team can also provide any guidance required through a Whatsapp video call.

There aren’t any special requirements to install the switch. Just make sure there are compatible metal boxes in place before carrying out installation.

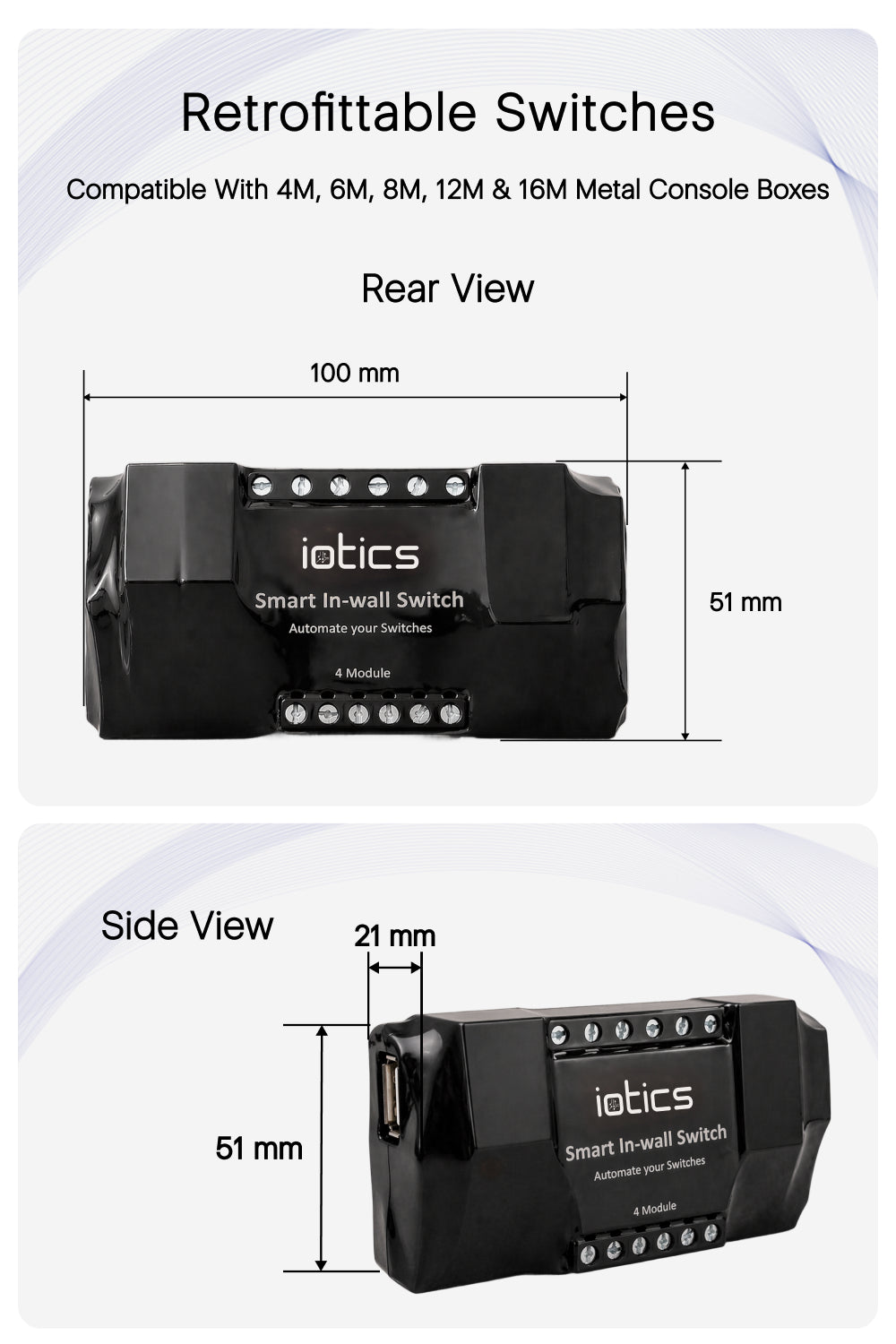

Yes, they are designed to be compatible with most existing switchboards, as long as the installed wall (console) boxes meet the required size, depth, and mounting standards.

Although it has been built to be mounted horizontally, in exceptions such as space restriction or vertical space, this can also work vertically.

As the switches are mounted inside a metal enclosure (wall box), they are suitable for installation in bathrooms, subject to proper installation practices and adherence to local electrical safety regulations.

Yes, our switches can support coolers however we request you to check the power rating just to make sure. We will be happy to assist you with any information if required.

Our switches do not support motors above 2hp directly, however contactors can be connected to these smart switches.

For remote controlled BLDC fans, please purchase our in-wall switches and connect to any switch. The On/Off operations can be controlled using the in-wall switches but levels will be controlled using the BLDC fan remote.

If you do not have internet access, you will not be able to control your switch from anywhere in the world. However, you can still operate your connected loads using the manual switches as usual.

If there is not adequate wireless coverage where your switch is installed, your switch might come online and offline on the mobile app and you might not have the best experience controlling these switches through our mobile app. We recommend that you get a good wireless router for the best experience.

No you do not need to buy any special hubs to connect the in-wall switches to the internet. Each switch has a built in Wi-Fi chip that will connect to your home wireless router.

The switch will have to be reconfigured to work with the new wireless name (SSID). Turn on and off the first switch for 5 times within 20 seconds to reconfigure the device..Now go through the setup process as usual to configure the device to work with the new wireless name. The offline device on the app can be deleted by swiping to the left.

Toggle the first switch ON and OFF five times within 20 seconds until a buzzer sound is heard. Then open the Iotics app, tap the burger menu, and select Add Device. Choose your module (e.g., In-Wall) and follow the on-screen instructions in the app to complete the setup.

Open Iotics mobile app, choose the device tile you want to rename. Go to the settings tab, click on the rename device button and rename it.

Open iotics mobile app, choose your device tile from the dashboard screen. Go to the control tab, touch & hold the switch name and rename it.

Choose your device tile from the dashboard screen. Go to the schedule tab, click on the switch schedule and click on delete icon. Your switch schedule will be deleted.

Choose your device tile from the dashboard screen. Go to the settings tab, click on the check update button. If you have a new update, click on the update button on the screen.

If you want to delete an offline device, swipe left on the tile and click on delete.

On the dashboard, tap the device tile you want to remove. Open the Settings tab, select “Do you want to delete this device?”, enter “Delete” for confirmation, and press “Delete Device” to complete the process.

The device works through the internet and not the local network.

These switches work on the 2.4 GHz Wifi Frequency. They do not work on the 5 GHz frequency.

As many as you wish. We don't have any restrictions on this number at the moment. So, if for example 10 members want to access from 10 different phones, they can do so.

Yes. The mobile app is available for both Android and iOS platforms.

The in-wall switches have been tested and we take pride with our reliability. However, if it does malfunction and it is no fault of yours we will be very happy to replace the switch as long as it is within 3 years of purchase. If after 3 years you have this issue, we will repair the switch and you will only have to pay for the part that is faulty.

Again, we take real pride in providing you with a high quality product. But if out of no fault of yours the switch stops working we will be very happy to replace the switch as long as it is within 3 years of purchase. If after 3 years you have this issue, we will repair the switch and you will only have to pay for the part that is faulty.

In the iotics mobile app, navigate to the settings screen and click on the Register button and follow the instructions on the screen to register your warranty.

If you have registered for warranty in the iotics mobile app, navigate to the settings screen and click on the Claim Warranty button and follow the instructions on the screen to claim your warranty.

This will not cause any problems to the device however, if the primary supply is connected as the EB supply, any power outage can cause the entire device and connected loads to be powered off, which loses the benefits of being connected to the UPS. Please follow instructions carefully during installation.

Inwall switches are rated to operate from 80 Vac to 270 Vac. The device will not function if the voltage drops to below 80 Vac.

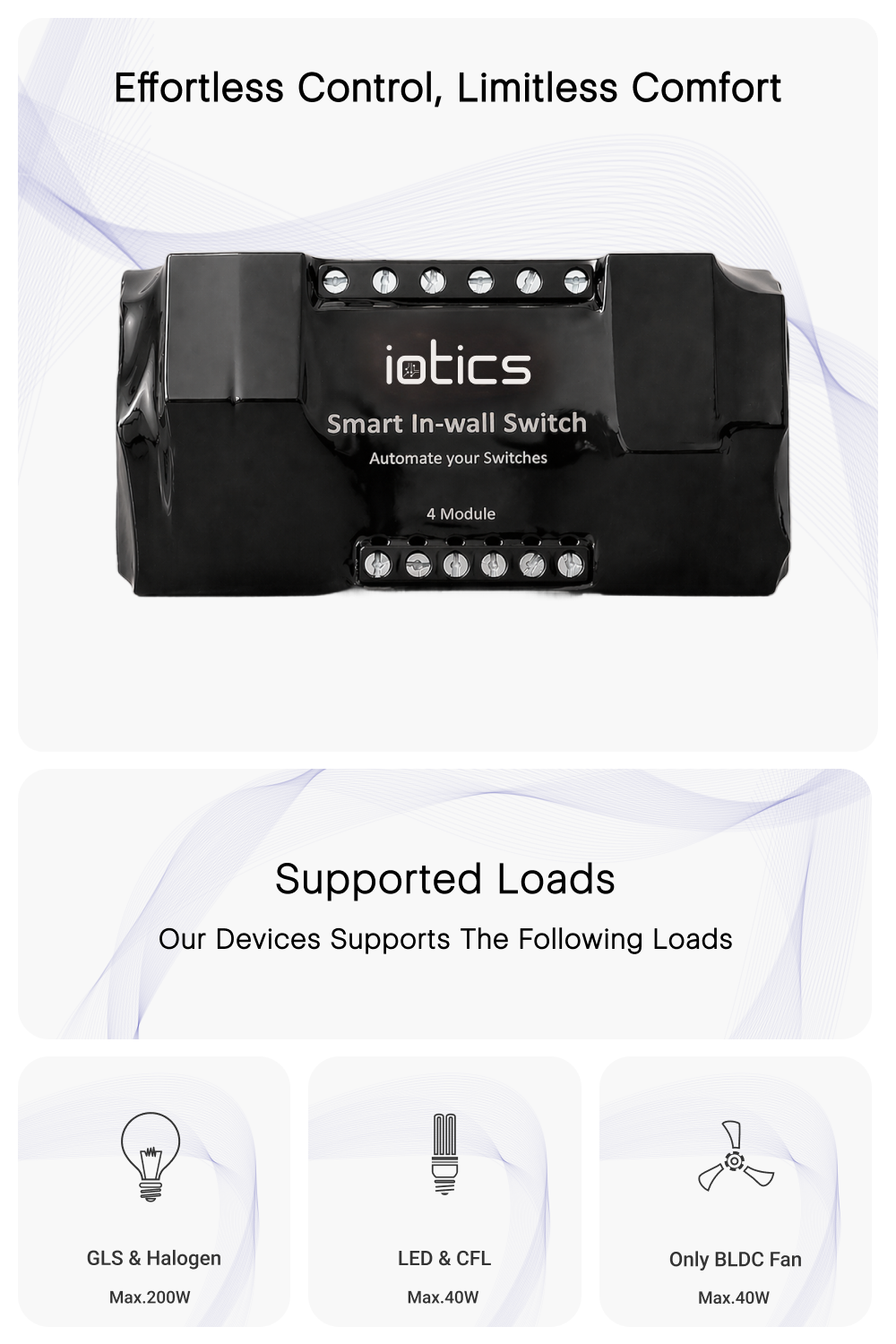

For Lights Minimum current: 100mA Maximum current: 6A for resistive load, Max current is less than 1A for LED lights. For High power loads Maximum current: 16A for resistive load, Max current: 8A for inductive loads with power factor 0.9.

Yes. Over-current protection circuit is built-in for the switch

These devices operate with -10°C to +55°C

The last position is retained in memory and it will revert to the last known state of the device.

Yes, the on-off state is retained in memory so when the power is back, the switch will return to its original state.

No, Switch operating voltage range is 90VAC - 280VAC it can run on these voltage ranges without any problem

We have our own proprietary technology stack built on the back of some of the most reliable, scalable and robust cloud technologies in the world

When the power is restored, the switches will revert to its last known state. So if the light was on when the power shut down, the light will be on when the power comes back on.

No. Installation does not require any additional wiring or structural modifications.

Toggle the first switch ON and OFF five times within a 20-second interval till the buzzer sound is heard. Upon detecting this sequence, the device transitions into App Configuration Mode.

Toggle the second switch ON and OFF ten times within 20 seconds. The device interprets this sequence as a Factory Reset command and restores default settings.

Toggle the third switch ON and OFF five times within 20 seconds. This sequence initiates a network restart of the ESP module without altering saved configuration parameters.

No, our in-wall switches do not support Siri at the moment.

Our in-wall switches do not require any periodic service. From a software perspective, we have the over the air feature. Whenever we update the firmware, we will send the latest firmware update to the users mobile phone. This way any iotics switches are always up to date and constantly being improved.

Please contact us (+91 94870 44355 or info@iotics.io) for OEM/White labeling.

Yes. Iotics switches now work with the IFTTT platform.
